The Beast (LP/HP) Solution
The Beast 3200 is designed to handle both HP and LP burners.
The Beast 3200 is operational where the customers need a solution for LP tank vapors and/or to continue to operate without an open-tip flare. It is used for HP applications either up-set conditions, flow back, well unloading, or producing with no gas pipeline available.
Typicals
- Weight: 18,200 lbs
- Dimensions: H = 32' D = 8'
- 2 - 3" Inline Flash Arresters
- 3 - Sight Glasses
- Stainless Steel Bird Screen
- 4 - Pressure Gage Mounts
- Knock-out Pot and 1" Drain
- Control Panel & Pilot
- Patented Locking Inconel Studs & Washers
- Insulated 3" -> 8 lbs/cf
Pre-Cast Cement Base
- Weight: 30,000 lbs
- Dimensions: 10' X 10' X 2 '
- Pre-Cast Anchor Bolts in Base
- PE Stamped Design
Options Available
- Patented Smoke Detector
- Solar Package
- Template for Cast in-Place Base

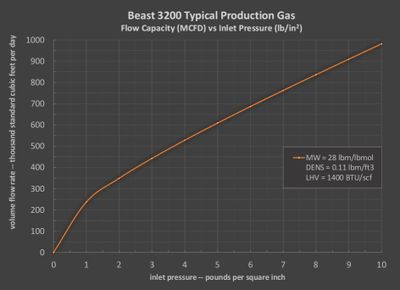

HP Burners (1 - 30 psi)
- Designed to handle seperator and VRT HP gas
- 3 - 2 " inlets
- Expandable hole pattern and special burner design available

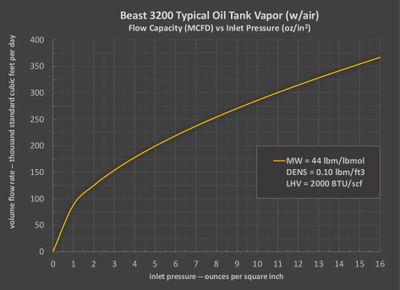

LP Burners (< less 1 oz. to tank pop-off)
- 10 Low Pressure Tank Vapor burners available to regulated in 4 different stages
- Burner arrangment is expandable to meet custom setting for field conditions.
- Flange mounted for fast burner exchanges
- Pre-plumbed Constant Feed
