OTF 2000

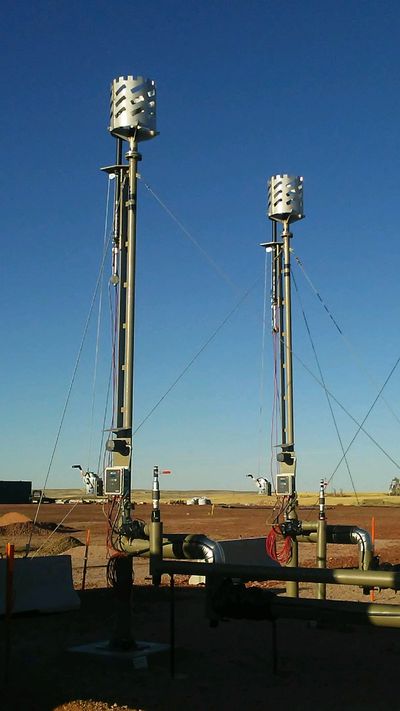

20 ft tall Open Tipped Flare

The OTF 2000 is designed to flare associated gas while meeting §60.18 or operating where the customers need a solution for non-OOOOa tank vapors and/or to continue to operate  used for either up-set conditions, flow back, well unloading, or producing with no gas pipeline available.

General Specs:

  • Overall height: 20’
  • Base Plate: 16” x 16” x ½”
  • 6” OD lower knockout section
  • 1 –1” Manual drain valve
  • Inlet connection: 4” NPT Coupling connection
  • 3” threaded inline deflagration flame arrestor
  • Integrated plumbing for pilot gas with inlet near ground level
  • Tracking: 2”x1” HSS mounted to flare stack c/w retractable pilot holder & winch
  • Flare end with heat shield and crown ring
  • 3 - 3/8” wire rope for guy cables x 20’
  • 6 – ½” shackles
  • 3 – ½” x 12” turnbuckles
  • Gussets, Lift Lugs, and Supports as required
  • Mounting provisions for Pilot and control box
  • Paint: High Heat Resistant DTM Enamel
  • Main Stack Flue: 3”

Available Options

  • Additional 10 feet of height
  • Auto drain system
    • Complete with Murphy LS200NDVO Level Control
    • Murphy DVU2105 dump valve
  • Solar Package
